Felt Production Line

Huakai's LYBG103A-360 needle-punched felt line produces viscose felt, wool-blend felt and heavy industrial felt. Finished width 3,200 mm, fabric weight 80–2,800 gsm, output 300 kg/h, running viscose, PET and PP fibres.

Typical Applications

Huakai needle-punched felt production line

Line Layout & Process Flow

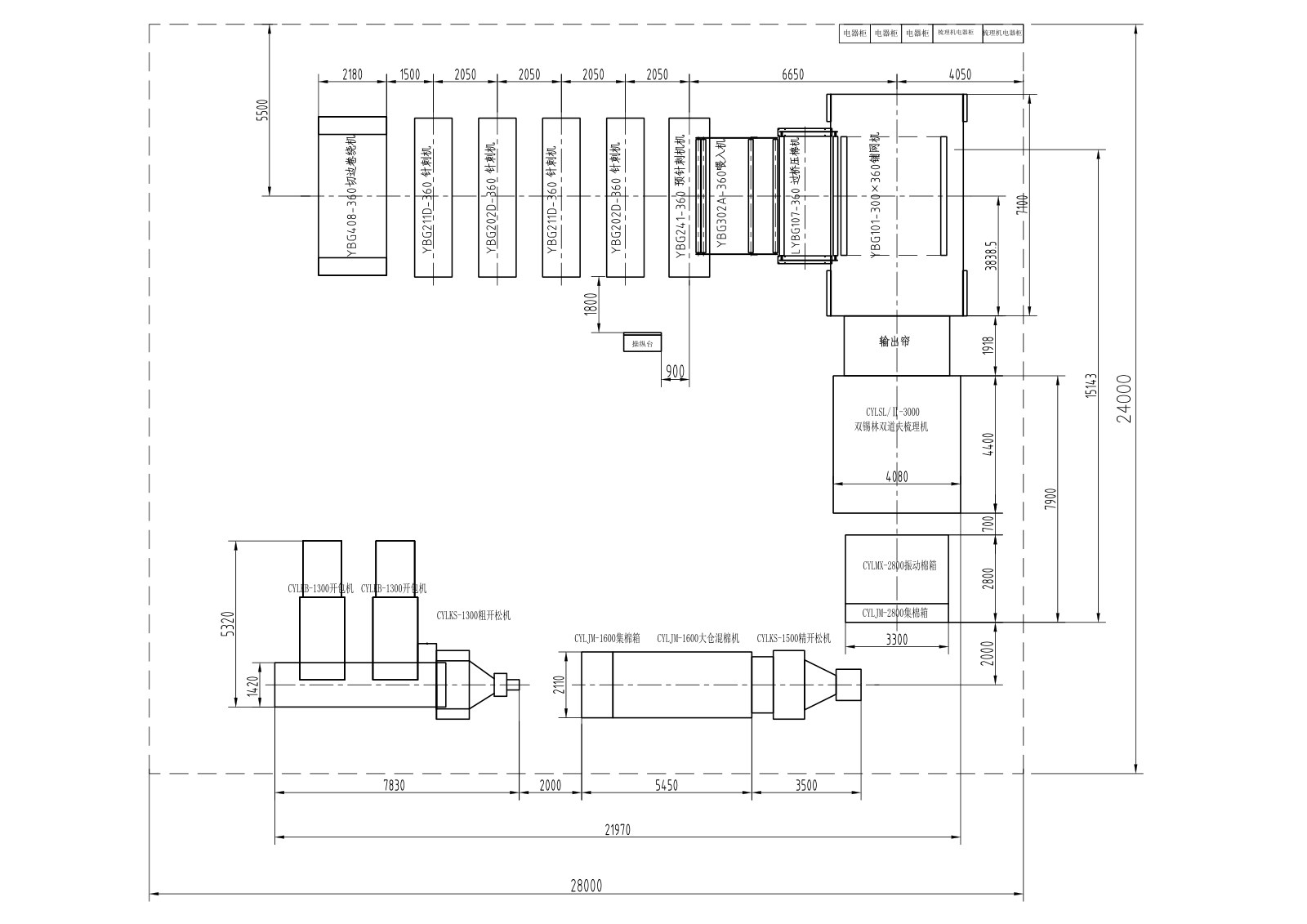

Huakai LYBG103A-360 felt production line — plant layout drawing

Plant layout — LYBG103A-360 felt production line

Huakai felt production line — process flow diagram from fibre opening to finished roll

Process flow — from fibre opening to finished roll

Technical Specifications — LYBG103A-360

Main parameterValue
Carding output width3000 mm
Lapping output width3600 mm
Finished product width3200 mm
Material weight80 ~ 2800 g/m²
Production speed0.5 ~ 6 m/min
Production output300 kg/h
Power capacity283 kW
Fibres processedViscose, PET, PP
Request a quote

Line Configuration

Bale Opener CYLKB-1300 ×2 · Willowing CYLKS-1300 · CYLJM-1600 ×2 · Cabinet Blending CYLMX-2800 ×2 · Vibrating Blending CYLMX-2800 · Carding CYLSL/Ⅱ-3000 · Cross Lapper YBG101-300×360 · Feeder YBG302A-360 · Pre-needle YBG241-360 · Needle YBG202D-360 / YBG211D-400 · Cutting & Winding YBG408-360 · Control Cabinet.

Why Huakai felt lines

Every line is engineered around your fibre, fabric weight and required capacity. Contact us for a quotation tailored to your material, working width and line speed.
